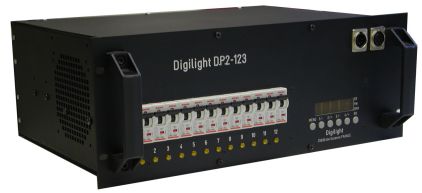

DIGILIGHT - DIMMERPACK series
Model : 12x3Kw - 4U - output on 2xPC
Model : 12x2Kw - 3U
GENERAL TECHNICAL SPECIFICATIONS
- Power supply: 220V to 380V on terminal blocks
- DMX512 Remote control 1990 standard: floating, optically isolated 3000V
- Yield: 98%
- Response time: 230micro-seconds
- Exits :
2 French standard power sockets
or terminal block, serial patch, or parallel patch
1 x P17 socket by circuits for 5kW models
- Semiconductor:
1 x triac 40A for 3kW models
2 x 50A thyristors for 5kW models
- Upstream protection:
safety fuse or circuit breaker UNI + N, or bipolar (depending on the type of power supply)
- Accepts any charge:
BT, neon, transformer, motor, etc ...
- Minimum load:
15W : to 2kW and 3kW models
40W : to 5kW models
- Filtering CE, by self-ring:
NF EN 61000-4-2; NF EN 61000-4-3; NF EN 61000-4-4
- Presence control : DMX connection and voltage presence
- Control by channel : charge indicator and blown fuse (or failure of the circuit breaker)
- Preheat 0 to 15%
- 9 programmed curves:
(1) S 0 / 10V; (2) S 220V; (3) Square
(4) Relay 50% + 10% with hysteresis
(5) Old - Former analog dimmers
(6) TV1; (7) TV2; (8) Neon; (9) Fluorescent
- Recording of a lighting state with the possibility of setting a direct course with rise time, from power
- Backup all data programmed for an unlimited time.
- Last lighting cue saved when interrupted DMX signal
- Designed for use with full power to 35 °
- Low noise cooling
- Remote Connectors:
1 XLR male 5b for DMX512 input 1 XLR female 5b for output DMX512
- Front made of sheet matte black
STANDARD PRODUCTS RANGE
- DP35.P17 : 3x5kW, output on 1xP17 32A per channel
- DP62.PC : 6x2,4kW, output on 2xPC per channel
- DP63.PC : 6x3kW, output on 2xPC per channel
- DP65.P17 : 6x5kW, output on 1xP17 32A per channel
- DP122.PC : 12x2,4kW, output on 2xPC per channel
- DP123.PC : 12x3kW, output on 2xPC per channel
- DP122.PS : 12x2,4kW, output on PAR64 serial patch
This series is the basis for the full range of DIGILIGHT dimmers.
Presented here in 19 "rack, Dimmerpack can be used as a module to compose touring ensemble: SHOWRACK and TOURING SHOWRACK.
100% digital dimmer rack
Standard specifications
- 6 keys-keyboard for the access to the functions
- Display information on 4 x 7-segment displays
- Selection of DMX channel
- Channels test
- Password for the access to programming curves
- 1 curve assignment among 9 for each channel
- Recording light statement (4 memories)
- Setting the overall intensity
- Up/ Down Time, from 0 to 999 seconds
- DMX512 Remote patch
- Preheat function
Options
- Triangle power supply (requires pole circuit breakers
upstream)
- General Interdifférentiel upstream
- Analog input 0 / 10V
- Power Cable 2 meters
- Flight case (3U or 4U)
Dimensions
19 ", 3U or 4U
400mm depth
Weight
14kg
