DIGILIGHT - TOURING SHOWRACK range
DISCONTINUED PRODUCT --- DISCONTINUED PRODUCT
Modèles standards disponibles :
TSR.240 : 2 x DP.122, 24 channels, 48 outputs of 1kW, DMX512, 1 power module, 1 flight case
TSR.360 : 3 x DP.122, 36 channels, 72 outputs of 1kW, DMX512, 1 power module, 1 flight case
TSR.480 : 4 x DP.122, 48 channels, 96 outputs of 1kW, DMX512, 1 power module, 1 flight case
TSR.600 : 5 x DP.122, 60 channels, 120 outputs of 1kW, DMX512, 1 power module, 1 flight case
TSR.720 : 6 x DP.122, 72 channels, 144 outputs of 1kW, DMX512, 1 power module, 1 flight case
TSR.840 : 7 x DP.122, 84 channels, 168 outputs of 1kW, DMX512, 1 power module, 1 flight case
TSR.960 : 8 x DP.122, 96 channels, 192 outputs of 1kW, DMX512, 1 power module, 1 flight case
Technical specifications of the modules :
Showrack is composed with DIMMERPACK power module
BASIS CONCEPT
Rugged steel frame 2mm thick, placed in a bell type of flight case. Compatible with most major brands of tour lighting equipment. The electrical equipment was the subject of specific studies to make it usable in most European countries. It can be modified for use, as a precise specification.

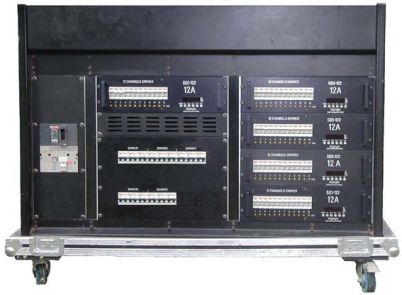

Touring Showrack - TSR600
TECHNICAL SPECIFICATIONS
Modular dimmer, including:
- 4 to 8 DIMMERPACK DP122 modules
- 1 power supply module
- Dispatching DMX512 digital remote control
- Dispatching power panels
- Output panels on Socapex SLEF419AR
- Rugged steel frame 2mm thick
- In flight case
Modular dimmer, available from 24 to 96 channels.
Security standards :
According to the electrical standards, it is necessary to establish a differential switch or a 30 mA circuit breaker in each portable block dimmer. A slot is provided for this purpose on each model.
