DIGILIGHT - DIMCONTROL range

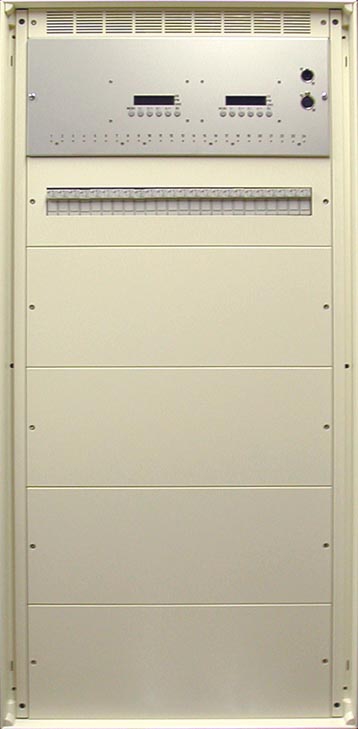

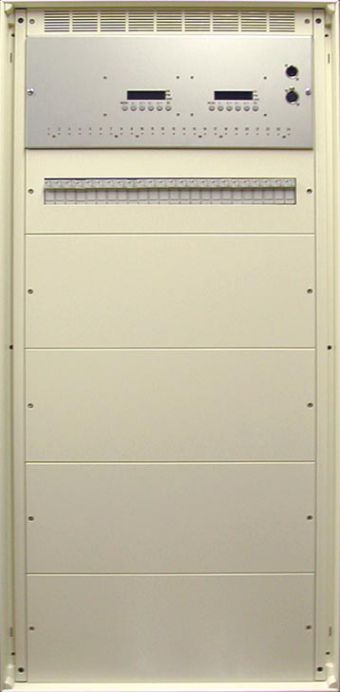

DIMCONTROL - DC243
TECHNICAL SPECIFICATIONS GENERAL
- SCHNEIDER electric cabinet
From 3 to 12 channels: model ref. 08104
(H 600 x W 550 x D: 200mm
24 channels: modèls ref. 08108
- Power supply :
380V three phase, 50Hz on terminals
- Semi conductor:
1 triac 40A, 50A thyristors or 2 depending on model
- Protection:
Circuit breaker Kingdom + N or bipolar depending on the type of power
- Response time: 230 microseconds
- Charge: Charging (BT, neon, transformer, motor ...)
- Minimum load:
15W to 3kW models
40W to 5kW models
- Filtering CE, by self-ring
- Controls: State of the circuit, presence DMX link
- All programmed data is saved to a time
unlimited, last lighting cue maintained in case of DMX signal interruption
- Designed for use with full power to 35 °
- Remote Control DMX512 (analog 0 / 10V optional)
- Power Connectors: Terminals
- Remote control connectors: XLR male + female 5b
STANDARD VERSION
- Keyboard 6 keys for accessing functions
- Viewing information on 4 x 7-segment displays
- Preheat
- Local test circuits
- Recording 4 lighting cues
- 9 programmable curves for each channels
- Password for the programming curves access
- Remote Patch
- Available in standard from 3 to 24 circuits
OPTIONS FOR LIGHTING ROOM
- Dual power
- Forcing for programmable safety system (active input at the opening)
- Forcing for lighting service (active input to closing)
- Priority Platinum to manage up to 3 sources DMX
Dimmer in wall cabinet, electrician type, for the dimming of light points
(theaters, halls, museums ...)
